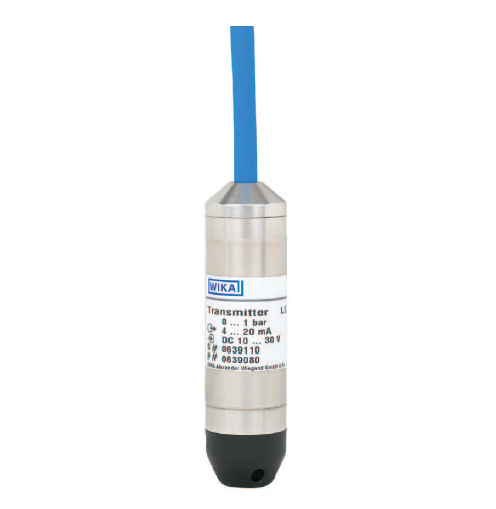

The model LS-10 submersible pressure transmitter has been optimised for simple measuring requirements in level measurement. It offers excellent quality, is cost-effective and reliable.
It has been designed to the current demands of the industry and has a 4 ... 20 mA output as standard, an accuracy of 0.5% and PUR cable. With IP 68 ingress protection, it is suitable for permanent level measurement up to 100 m water
column
Specifications
- Principle : Hydrostatic Level measurement
- Output : 4-20 mA
- Power Supply : 24 VDC
- Accuracy at reference conditions ≤ ±0.5 % of span
- Ingress protection (per IEC 60529) : IP 68
- Wetted parts :Case, Sensor : Stainless Steel ; Cable : PUR
- Manufacturer : WIKA
- Country of Origin : Germany
- Download Catalog here
