WIKA | Ultrasonic Level Transmitter

WIKA

Regular price

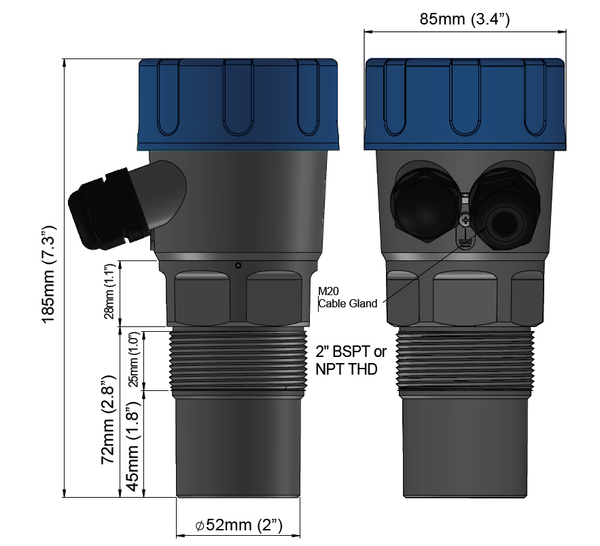

WIKA's latest offering in the Level measurement segment, MiniWave, is a compact, loop-powered ultrasonic level transmitter for continuous measurement of liquids.

Easy and flexible mounting combined with high chemical compatibility and 12 metres (40ft) measuring range makes the MiniWave suitable in multiple applications in all industries

Key specifications are listed below :

  • Maximum Range : 12 m
  • Blanking Distance : 0.25 m
  • Frequency : 50 Hz
  • Operating Voltage : 24 VDC
  • Power Consumption : 0.5 W @ 24 VDC
  • Operating Pressure : Upto 3 bar
  • Operating Temperature : -40°C to 60°C
  • Beam Angle : 7°
  • Transducer Material : PVDF
  • Housing Material : Aluminium
  • Download catalog here
