Georg Fischer | Conductivity/TDS Sensor | 2818-2823

Georg Fischer

Regular price

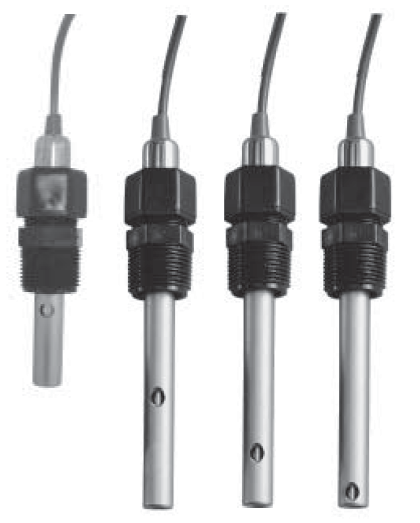

The Georg Fischer Signet 2818-2823 Conductivity/Resistivity Electrodes
are designed to provide versatile installation and accurate sensing across a very broad dynamic range.

These electrodes are built with a controlled surface finish to ensure accuracy and repeatability. The standard electrode is constructed 316 SS or Titanium,
but there are other materials available for maximum chemical compatibility.

Specifications

  • Cell Constant Accuracy : ±2% of reading
  • Range : Upto 200,000 μS / 100,000 ppm
  • Process connection : ¾ in. NPT
  • Wetted Materials : EPR (EPDM), Carbon fiber reinforced PTFE, 316L stainless steel
  • Mounting : In-Line
  • Operating Temperature, Pressure Range: -10 °C to 65 °C (14 °F to 149 °F): 0 to 6.9 bar (0 to 100 psi)
  • Manufacturer : Georg Fischer
  • Country of Origin : United States of America
